+71-
25ft long
-
Sleeps 5
-
1 slides
-
6.6L Vortec V8
-
401 HP

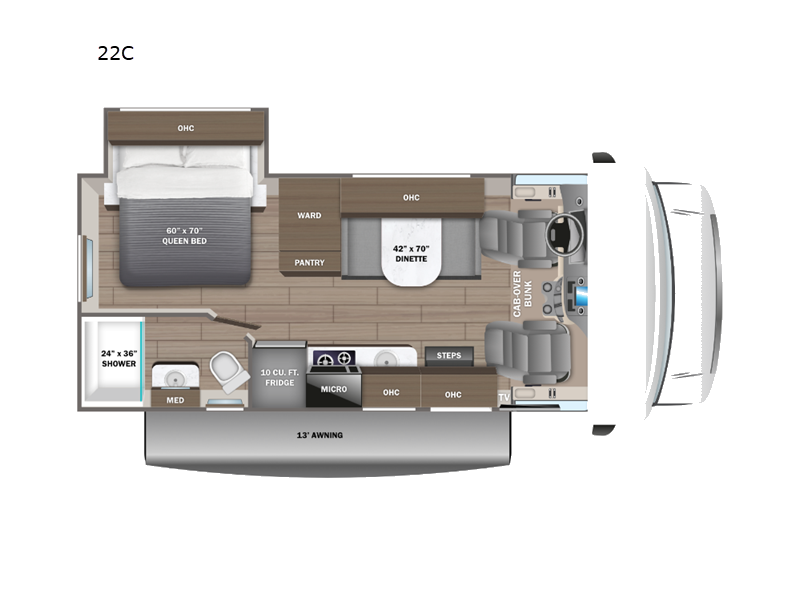

22C Floorplan
Specifications
| Sleeps | 5 | Slides | 1 |
| Length | 25 ft 2 in | Ext Width | 8 ft 4 in |
| Ext Height | 11 ft 6 in | Int Height | 7 ft |
| Interior Color | Ashbrook | Exterior Color | Standard Graphics |
| Hitch Weight | 5000 lbs | GVWR | 14200 lbs |
| Fresh Water Capacity | 43 gals | Grey Water Capacity | 40 gals |
| Black Water Capacity | 31 gals | Tire Size | LT225/75R16E |
| Furnace BTU | 30000 btu | Generator | 4,000 watt |
| Fuel Type | Gasoline | Miles | 2286 |
| Engine | 6.6L Vortec V8 | Chassis | Chevy 4500 |
| Horsepower | 401 hp | Wheelbase | 159 in |
| Number Of Bunks | 1 | Available Beds | RV Queen |
| Torque | 464 ft-lb | Refrigerator Type | 12V |
| Refrigerator Size | 10 cu ft | Convection Cooking | Yes |
| Cooktop Burners | 2 | Shower Size | 24" x 36" |
| Number of Awnings | 1 | LP Tank Capacity | 12.2 gals |
| Water Heater Capacity | 6 gal | Water Heater Type | Gas/Electric DSI |
| AC BTU | 13500 btu | Basement Storage | 23 cu. ft. |
| TV Info | LED HD Smart TV | Awning Info | 13' Electric |
| Gross Combined Weight | 20000 lbs | Shower Type | Standard |
| Electrical Service | 30 amp | VIN | 1hA6GUC73SN015776 |
Description
Jayco Redhawk SE Class C gas motorhome 22C highlights:
- Bunk Over Cab
- Wardrobe and Pantry
- 60" x 70" Queen Bed
- 10 Cu. Ft. 12V Refrigerator
- Chevrolet Chassis
- StabiliTrak Stability Control System
There's a comfortable place to sleep for everyone in this motorhome! From the corner 60" x 70" queen bed that slides out to the bunk over cab, and even the 42" x 70" booth dinette once converted. You can store your favorite snacks and hang up your clothes in the wardrobe/pantry. The chef can prepare delicious meals with the two burner cooktop and if there happens to be any leftovers then they can be stored in the 10 cu. ft. 12V refrigerator. The rear corner bathroom has a 24" x 36" shower that you are sure to enjoy after a long day of traveling!
Experience easy living in any one of these Jayco Redhawk SE Class C gas motorhomes! They are built with a Stronghold VBL lamination which is the lightest and strongest construction in the RV industry. The one-piece seamless front cap which helps to resist wear and tear, the Chevrolet 4500 chassis, and the 6.6L Vortec V8 401HP engine shows these units are built to last for years to come. The mandatory Customer Value package includes an electric patio awning to protect you rain or shine, an LED HD Smart TV, and a backup camera to make parking and maneuvering easier. You will also love your options that include automatic hydraulic leveling jacks and an optional 200W solar panel with a dual controller and second house battery for off-grid capabilities!
Features
Standard Features (2026)
Chassis Equipment for 22A, 22C, 22E, 22T
- Chevy® 4500 chassis
- GVWR- 14,200 lb.
- GCWR- 20,000 lb.
- 5,000 lb. hitch with 500 lb. tongue capacity and 7-pin plug
- 6.6L Vortec V8 401 HP engine with 464 ft.-lb. torque
- Hydra-matic 6-speed automatic transmission with overdrive
- 150-amp alternator
- StabiliTrak stability control system
Chassis Equipment for 22AF, 22CF, 22EF, 22TF
- Ford® E-350 chassis
- GVWR- 12,500 lb.
- GCWR- 18,500 lb.
- 5,000 lb. hitch with 500 lb. tongue capacity and 7-pin plug
- 7.3L V-8 325 HP engine with 450 ft.-lb. torque
- 6-speed TorqShift® series transmission with overdrive
- 210-amp alternator
- Catalytic converter theft deterrent
- Tire pressure monitoring system (TPMS)
- SecuriLock® anti-theft ignition
Chassis Equipment for 29KF, 31FF
- Ford® E-450 chassis
- GVWR- 14,500 lb.
- GCWR- 22,000 lb.
- 7.3L V-8 325 HP engine with 450 ft.-lb. torque
- 6-speed TorqShift® series transmission with overdrive
- 210-amp alternator
- Tire pressure monitoring system (TPMS)
- Catalytic converter theft deterrent
- Electronic stability control
- Traction control
- 7,500 lb. hitch with 750 lb. tongue capacity with 4-pin plug
Driving Equipment on All Floorplans
- E-rated highway tires- LT225/75R16
- 12V chassis battery
- Power anti-lock brakes with power steering
- Remote-controlled, side-view mirrors
- Hill start assist
- Tilt steering wheel
- Cruise control
- Electronic stability control
- Traction control
- Power windows and door locks
- Auxiliary start switch
- Driver and passenger airbags
Exterior Equipment
- StrongholdVBL™ roof, floor and sidewalls
- Bead-foam insulation (R-24 max roof, R-9 max floor, R-5 max walls)
- Tufflex™ PVC laminated roof
- Aluminum running boards
- Fiberglass exterior walls with vinyl graphics
- Entrance door with industry’s largest travel-view window
- Electric-powered entrance step with integrated house battery compartment
- Third brake light
- Cable TV hookup with RG-6 coax
- Digital antenna with signal booster
- 4,000W generator
- Solar prep
- 12V house battery
- Transfer switch with reverse polarity protection
- 30-amp electrical service
- 12.2 gal. propane tank (41 lb.)
- LP quick-connect hookup
- Exterior utility center
- Winterization drain system
- Outside shower
- 12V demand water pump
- Water filtration system
Interior
- Overhead bunk with 750 lb. capacity
- 84 in. ceiling height
- High-intensity, recessed LED ceiling lights
- Ball-bearing drawer guides
- 42 in. x 78 in. U-shaped dinette (22A, 22AF, 22EF, 22EF)
- Jayco-exclusive, easy-operation legless dinette table (22C, 22CF, 29KF,31FF)
- 48 in. dinette bench with removable table (22T, 22TF)
- 2-point lap safety belts in all designated seating locations
- Interior entrance door grab handle
- Interior command center
- Pleated blackout shades
- 13,500 BTU ducted A/C
- 30,000 BTU auto-ignition furnace
- 6 gal. gas/electric DSI auto-ignition water heater
- 10 cu. ft. 12V refrigerator
- 2-burner cooktop with flush cover
- Convection microwave oven
- Stainless steel kitchen sink
- Queen-size bed with bedspread (22A, 22AF, 22C, 22CF, 31FF, 29KF, 31FF)
- (2) twin-size beds with filler cushion convert to king-size bed (22T, 22TF)
- Large wardrobes (select models)
- Bunks with industry-exclusive 300 lb. capacity each (31FF)
- Shower with decorative ABS surround
- Stainless steel bathroom sink
- Toilet with foot flush
- Smoke alarm
- Carbon monoxide detector
- Fire extinguisher
Customer Value Package (Mandatory)
- One-piece, seamless, fiberglass front cap
- Electric patio awning
- Black holding tank sprayer
- Heated holding tanks (12V pads)
- Backup camera
- LED HD Smart TV
Options
- Automatic hydraulic leveling jacks
- 200W solar panel with dual controller and second house battery
Please see us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
